Boundary values

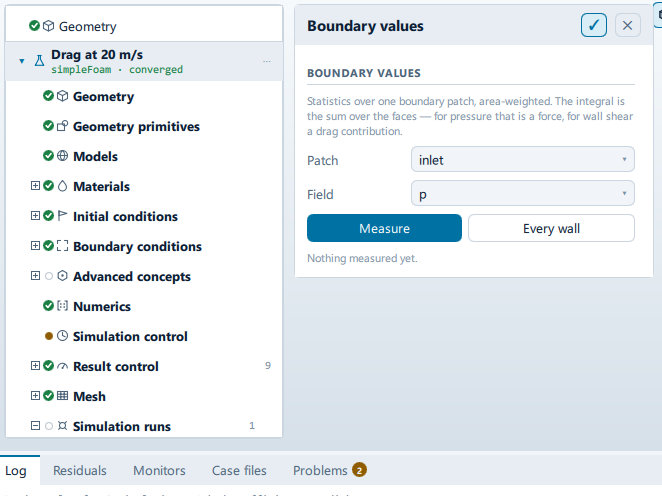

Where it is
Setup tree: Post-processing > Boundary values
Controls
Boundary values
Patch
- Control: choice (
ComboRow) - Shown when:
Results.ready && root.fieldsAreThisRun
A wall: the body itself.
Field
- Control: choice (
ComboRow) - Shown when:
Results.ready && root.fieldsAreThisRun
Derived here, not written by the solver.
Measure
- Control: action (
ToolButton2) - Enabled when:
root.pickedPatch !== "" && root.pickedField !== ""
Every wall
- Control: action (
ToolButton2) - Enabled when:
root.fieldsAreThisRun && Results.hasWalls && root.pickedField !== ""
Recompute
- Control: action (
ToolButton2) - Enabled when:
Results.ready && root.fieldsAreThisRun
Export as CSV
- Control: action (
ToolButton2)
Conditional and repeated groups
Per item in PostState.measurements
repeated once for every entry in PostState.measurements
Remove
- Control: action (
ToolButton2)
Lists this panel shows
Read straight from the data behind the panel, not from a hand-written list.
Boundary values
From a fixed list in the application.
| l |
|---|
| Faces |
| Area |
| Minimum |
| Maximum |
| Area mean |
| Area integral |
| Flow rate |
| Time |
Problems reported against this step
The application reports no problems against this step.
