Post-processing
Where it is

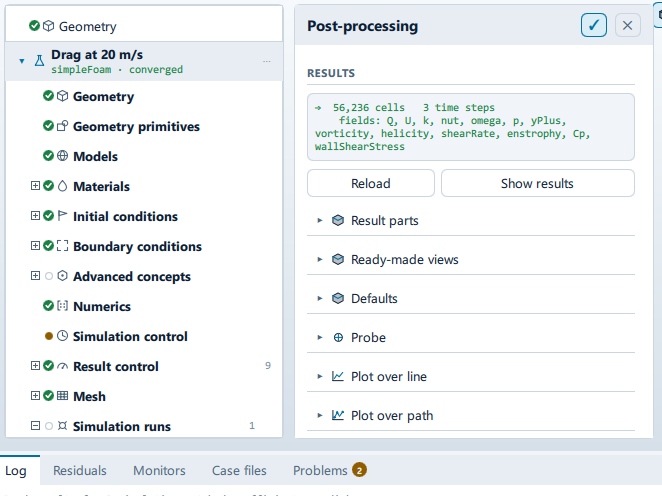

Setup tree: Post-processing
Controls
Results
Reload
- Control: action (
ToolButton2)
Viewing results
Label changes with the case; the source gives these forms: Viewing results, Show results.
- Control: action (
ToolButton2) - Enabled when:
Results.ready
Streamline seeds
- Control: value (
ValueField) - Bound to:
PostState.defaultSeedCount - Value modes: none (plain entry)
Enough to read the flow, few enough to see the model through them. A few hundred over a seed plane covers the model in a solid curtain; a hundred or so reads as a flow.
Export probe as CSV
- Control: action (
ToolButton2) - Shown when:
PostState.probeHasPoint
Hide the line plot
Label changes with the case; the source gives these forms: Hide the line plot, Sample along a line.
- Control: action (
ToolButton2) - Shown when:
Results.ready
Field
- Control: choice (
ComboRow) - Default: empty
- Bound to:
PostState.lineField - Shown when:
PostState.lineActive
Component
- Control: choice (
ComboRow) - Bound to:
PostState.componentOptions - Shown when:
PostState.lineActive && Results.componentCount(PostState.lineField) > 1
From X
- Control: value (
ValueField) - Unit: m
- Value modes: none (plain entry)
- Shown when:
PostState.lineActive
From Y
- Control: value (
ValueField) - Unit: m
- Value modes: none (plain entry)
- Shown when:
PostState.lineActive
From Z
- Control: value (
ValueField) - Unit: m
- Value modes: none (plain entry)
- Shown when:
PostState.lineActive
To X
- Control: value (
ValueField) - Unit: m
- Value modes: none (plain entry)
- Shown when:
PostState.lineActive
To Y
- Control: value (
ValueField) - Unit: m
- Value modes: none (plain entry)
- Shown when:
PostState.lineActive
To Z
- Control: value (
ValueField) - Unit: m
- Value modes: none (plain entry)
- Shown when:
PostState.lineActive
Samples
- Control: value (
ValueField) - Default:
200 - Bound to:
PostState.lineCount - Value modes: none (plain entry)
- Shown when:
PostState.lineActive
Aim at the model
- Control: action (
ToolButton2) - Enabled when:
Results.ready
Export CSV
- Control: action (
ToolButton2) - Enabled when:
PostState.lineSamples.length > 0
Hide the path plot
Label changes with the case; the source gives these forms: Hide the path plot, Sample along a path.
- Control: action (
ToolButton2) - Shown when:
Results.ready
Click points on the model… (…)
Label changes with the case; the source gives these forms: Click points on the model… (…), Pick points.
- Control: action (
ToolButton2) - Shown when:
PostState.pathActive
Field
- Control: choice (
ComboRow) - Default: empty
- Bound to:
PostState.pathField - Shown when:
PostState.pathActive
Component
- Control: choice (
ComboRow) - Bound to:
PostState.componentOptions - Shown when:
PostState.pathActive && Results.componentCount(PostState.pathField) > 1
Subdivisions
- Control: value (
ValueField) - Default:
20 - Bound to:
PostState.pathSubdivisions - Value modes: none (plain entry)
- Shown when:
PostState.pathActive
Sample points along each leg of the path, not along the whole of it — so adding a point does not thin out the ones already there.
Generate plot
- Control: action (
ToolButton2) - Enabled when:
PostState.pathPoints.length >= 2 && PostState.pathField !== ""
Clear points
- Control: action (
ToolButton2) - Enabled when:
PostState.pathPoints.length > 0
Export CSV
- Control: action (
ToolButton2) - Shown when:
PostState.pathActive && PostState.pathSamples.length > 0
New field
- Control: value (
ValueField) - Value modes: none (plain entry)
- Shown when:
Results.ready
Compute
- Control: action (
ToolButton2) - Shown when:
Results.ready - Enabled when:
root.calcName !== "" && root.calcFormula !== "" && root.calcCheck.ok === true
+ Add direction
- Control: action (
ToolButton2)
Reset to 8 compass points
- Control: action (
ToolButton2)
Sweeping (… / …)…
Label changes with the case; the source gives these forms: Sweeping (… / …)…, Run wind-rose sweep.
- Control: action (
ToolButton2) - Shown when:
CaseState.pwcCase - Enabled when:
CaseState.meshExists && !CaseState.windRoseSweepRunning && JobExecutor.available
