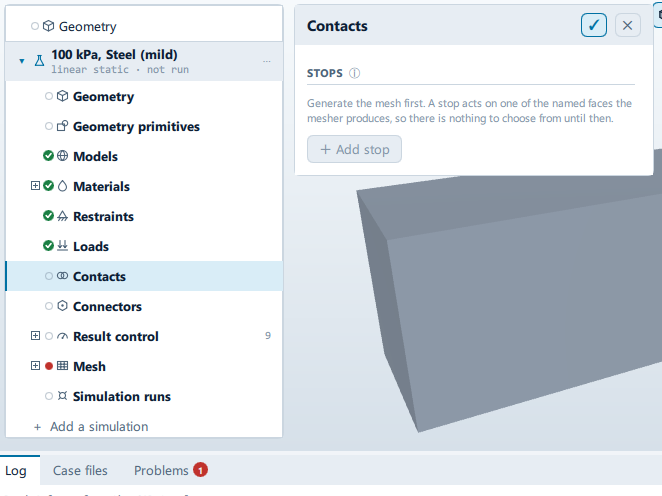

Contacts
Where it is
Setup tree: Contacts
Controls
STOPS
＋ Add stop
- Control: action (
ToolButton2)
Conditional and repeated groups
Per item in StructuralState.stops
repeated once for every entry in StructuralState.stops
Face
- Control: choice (
ComboRow)
Remove
- Control: action (
ToolButton2)
Direction
- Control: choice (
ComboRow) - Options:
X,Y,Z
The face
- Control: choice (
ComboRow) - Options:
may not go below,may not go above
Travel
- Control: value (
ValueField) - Unit: m
- Value modes:
constant
Problems reported against this step
The application reports no problems against this step.
… marks a value the application computes at run time, so the source carries no fixed text for it.
