Simulation runs
Where it is

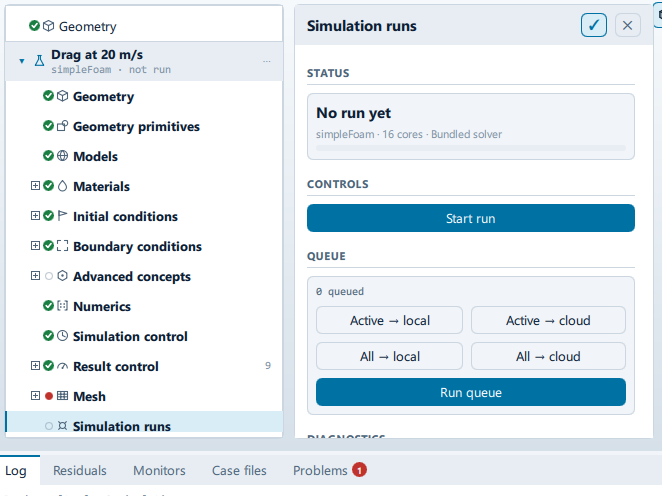

Setup tree: Simulation runs
Controls
Controls
Running…
Label changes with the case; the source gives these forms: Running…, Resume, Start run.
- Control: action (
ToolButton2) - Enabled when:
CaseState.runState !== "running"
Queue
Active → local
- Control: action (
ToolButton2)
Active → cloud
- Control: action (
ToolButton2)
All → local
- Control: action (
ToolButton2)
All → cloud
- Control: action (
ToolButton2)
Queue running
Label changes with the case; the source gives these forms: Queue running, Run queue.
- Control: action (
ToolButton2) - Enabled when:
!CaseState.simulationQueueRunning
Pause
- Control: action (
ToolButton2) - Shown when:
CaseState.runState === "running" || CaseState.runState === "paused" - Enabled when:
CaseState.runState === "running" && CaseState.activeJob !== "solve"
Stop gracefully
- Control: action (
ToolButton2) - Shown when:
CaseState.runState === "running" || CaseState.runState === "paused" - Enabled when:
CaseState.runState === "running" || CaseState.runState === "paused"
Kill
- Control: action (
ToolButton2) - Shown when:
CaseState.runState === "running" || CaseState.runState === "paused" - Enabled when:
CaseState.runState === "running" || CaseState.runState === "paused"
After the run
Continue for 1000 more iterations
- Control: action (
ToolButton2) - Shown when:
CaseState.runState === "converged" || CaseState.runState === "stopped"
Diagnostics
Trap floating-point exceptions
- Control: on/off (
ToggleRow)
On, a run that produces a NaN stops at once - which is what you want while a case is being set up. Off, it runs on. Some turbulence models form a quotient and clip it immediately, and the trap fires on the quotient rather than on the result, so a healthy run dies with no message.
Problems reported against this step
The application checks these before a run and reports them in the Problems tab against this step.
| Severity | Message |
|---|---|
| … | …: … |
| error | These results were not produced by a solver. No solver backend is installed, so the residuals, the monitors and any coefficient read off them are an illustrative preview. Do not quote them. Reports carry an "illustrative" watermark for the same reason. |
